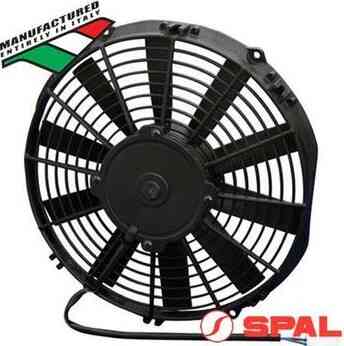

The SPAL EF3516 (VA09-BP12/C-27S) is a 24V, 11-inch straight-blade pusher fan engineered for durability with a sealed, waterproof (IP68) motor.

Technical Specifications:

• Model: VA09-BP12/C-27S (EF3516)
• Performance: 870 CFM / 1478 m³/h @ 4.2 Amps
• Dimensions: 11" (280mm) Blade Diameter, 52mm Depth
• Features: 24V DC, Straight Blade, Integrated Finger Guard, IP68 Sealed Motor

Fitment & Sizing:

• A (Total Width): 294mm / 11.57"
• B (Total Height): 310mm / 12.2"
• C (Half Width): 155mm / 6.1"
• D (Mounting Centres): 269mm / 10.59"
• E (Total Depth): 52mm / 2.05"
