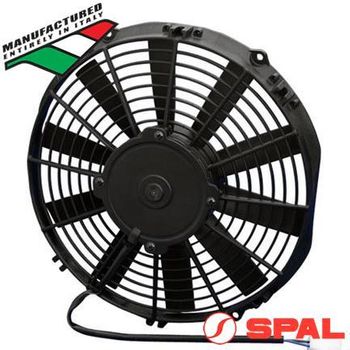

The SPAL EF3515 (VA09-BP12/C-27A) is a specialized, 11-inch 24V electric thermo fan engineered specifically for heavy-duty, commercial, and industrial applications. Delivering a reliable 874 CFM of airflow, this low-profile straight-blade puller fan mounts behind the cooling core to draw air through efficiently. Physically in stock at our Kerikeri warehouse and ready for daily courier dispatch, this genuine Italian-made 24V unit is ready to support Kiwi transport operators and heavy machinery builds without the delay of overseas drop-shipping.

Part Number Cross-Reference Matrix

For seamless replacement or upgrading of your 24-volt cooling layout, the EF3515 is the correct factory match or high-output alternative for the following references:

• SPAL Global Model: VA09-BP12/C-27A
• US Factory Part #: 30100390
• Alternative Trade / SKU References: EF3515 / SPAL-EF3515 / SPEF3515
• 24V Pusher Counterpart: EF3516 (If your heavy vehicle configuration requires a front-mounted fan to push air into the core, use the 24V EF3516 model)

Applications: What This Fan Is Used For

The EF3515 24V fan is selected by professional Kiwi fleet mechanics and heavy-equipment fabricators for these specific setups:

• Commercial Trucks & Buses: The native 24V electrical design integrates perfectly into commercial transport cooling systems without needing voltage reducers.
• Heavy Industrial & Agricultural Machinery: Thrives on excavators, tractors, and stationary power plants facing high-duty thermal cycles.
• 4WD Touring & Overland Rigs: A premier upgrade for heavy-duty 4x4 vehicles running dual-battery 24V electrical configurations.
• Harsh Environment Durability: Features an individually triple-balanced assembly paired with a fully sealed, IP68 waterproof and dust-proof motor built for rugged conditions.

EF3515 11" SPAL 24V Thermo Fan Specifications

• SPAL Fan Model: VA09-BP12/C-27A (US Part # 30100390)
• Voltage: 24V
• Airflow Configuration: Puller (Mounts Behind Core to Pull Air)
• Blade & Shroud Type: Straight Blade / Protective Finger Guard Shroud
• Airflow Capacity: 874 CFM (1485 M³/H)
• Current Draw: 4.1 Amps
• Blade Diameter: 11 Inch (280mm)

Physical Dimensions (Verified Millimetres)

• A (Overall Width): 294mm
• B (Overall Height): 310mm
• C (Total Depth at Motor): 155mm
• D (Mounting Hole Spacing): 268mm
• E (Motor Housing Depth): 52mm

Technical Note: This is a 24V native system and is not compatible with standard 12V passenger vehicles. Please confirm your system voltage and clearance constraints using the 155mm total depth (Dimension C) requirement before finalizing fabrication.
