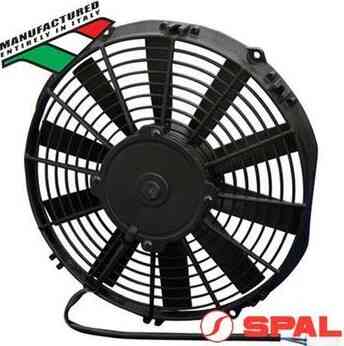

The SPAL EF3524 (VA10-AP50/C-25S) is a premium, high-performance 12V 12-inch electric pusher fan engineered for demanding automotive cooling applications. Designed for maximum reliability, this medium-profile straight-blade fan delivers an impressive 1070 CFM of airflow, making it the perfect upgrade for radiators, oil coolers, and intercoolers where engine bay space is limited. Common Applications & What People Use It For As a high-output universal fan, the SPAL EF3524 is widely trusted by mechanics, fabricators, and motorsport teams across New Zealand for the following uses: - Front-Mount Radiator Cooling: Installed directly on the grille side of the radiator to push air through the core. This is essential when a large engine swap leaves no room for a puller fan on the engine side.
- Intercooler & Turbo Setups: Used to maintain stable intake temperatures on front-mount or top-mount intercoolers in turbocharged and supercharged vehicles.
- Transmission & Oil Coolers: Mounted to auxiliary fluid coolers on heavy-duty 4WDs, tow vehicles, and track cars to prevent transmission overheating under heavy loads.
- Air Conditioning Condensers: Added as secondary auxiliary cooling to boost A/C efficiency at idle or during low-speed driving in classic cars and modified street builds.
- Motorsport & Off-Road Projects: Popular in drift cars, circuit racers, and jet boats due to its IP68 waterproof rating, allowing it to survive extreme vibration, mud, and water exposure.
Part Number Cross-Reference Matrix This unit is a direct match, universal replacement, or trade equivalent for the following part numbers and industry codes: - SPAL Global SKU: VA10-AP50/C-25S
- SPAL US / Manufacturer Part #: 30101505 (SPU-IX-30101505)
- Alternative Trade Reference: SPEF3524 / SPAL-EF3524
- Texas Truck A/C / Air Conditioning Code: T2035 / 100-1050MP
- Industry UPC Barcode: 816211020252 / 666501380852
Key Features & Benefits - Authentic SPAL Performance: Genuine Italian-engineered fan offering superior airflow compared to generic alternatives.
- Heavy-Duty Motor: Features an IP68-rated waterproof and dustproof motor, built to survive harsh engine bay environments.
- Smooth Operation: Triple-balanced assembly ensures whisper-quiet performance, minimal vibration, and an extended motor lifespan.
- Peace of Mind: Covered by a comprehensive 3-year manufacturer's warranty.
EF3524 12" SPAL Thermo Fan Specifications - SPAL Fan Model / Part #: VA10-AP50/C-25S (US Part # 30101505)
- Voltage: 12V
- Airflow Configuration: Pusher (Front Mount)
- Blade Diameter: 12 Inch (305mm)
- Blade & Shroud Type: Straight Blade / Finger Guard Shroud
- Airflow Capacity: 1070 CFM (1818 M³/H)
- Current Draw: 8.6 Amps
- Unit Weight: 1.50kg

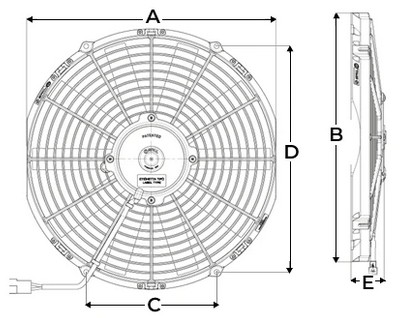

EF3524 Fitting Dimensions - A (Total Outer Diameter): 321mm / 12.64"
- B (Total Height): 336mm / 13.23"
- C (Half Diameter): 168mm / 6.61"
- D (Mounting Hole Distance): 292mm / 11.5"
- E (Unit Depth): 63mm / 2.48"
|
