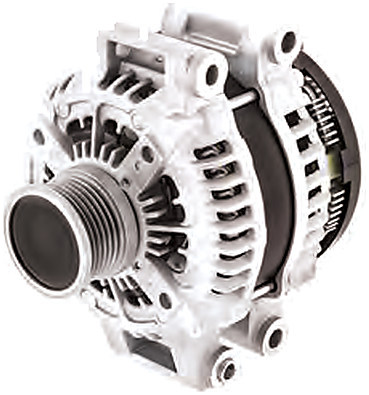

Jaylec Alternator 12V 220A for Jeep Grand Cherokee & Chrysler 300 3.0L CRD (65-8536)


Jaylec Alternator 12V 220A for Jeep Grand Cherokee & Chrysler 300 3.0L CRD (65-8536) - NZ Air Filter

In stock

Price:  NZD $430.97 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post




Recent View

Jaylec 65-8536 Alternator

12V 220A replacement alternator for selected Jeep Grand Cherokee WK/WK2 and Chrysler 300 models with the 3.0L EXF CRD diesel engine. Features ECU-controlled charging and a 52mm six-rib pulley.

Fitment note: Verify the ECU-control connection and exact EXF diesel application. Compare the paired mounting arrangement and 52mm six-rib pulley with the original Grand Cherokee or Chrysler 300 alternator.

Technical Specifications

  • Brand: Jaylec
  • Part number: 65-8536
  • Voltage: 12V
  • Rated output: 220A
  • Adjuster hole: 2 x 10, 2 x 8 mm
  • Pivot holes: 2 x 10, 2 x 8 mm
  • Adjuster-to-pivot centres: 162 mm
  • Inside foot-to-foot / pivot-lug dimension: 4 x 70 mm
  • Pulley diameter: 52 mm
  • Pulley type: 6PV
  • Charging control: ECU controlled

Part Number Cross References

Match the original alternator number and physical specification before ordering.

  • 04801835AB, 04801835AC, P04801835AB, 104210-6590, 104210-6591, 104210-6592, 104210-6593

Vehicle Application List

  • Chrysler 300 3.0 CRD EXF diesel; 2012–2015
  • Jeep Grand Cherokee IV WK/WK2, 3.0L CRD V6 EXF/A630 diesel; from 2011 (end date requires confirmation)

Applications apply to the specified engine and alternator configuration. Compare the original unit number, electrical connection and pulley before ordering.

Related air filters: K&N 33-3029 is listed for Grand Cherokee 3.0L diesel applications, including 2013. These are vehicle air-filter references; confirm the vehicle year and original airbox before ordering.
