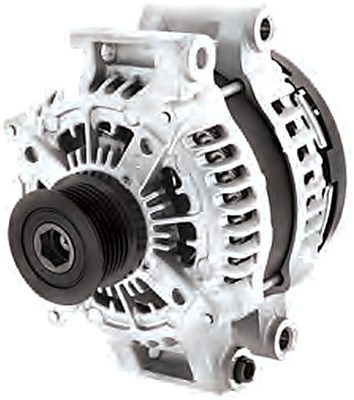

Jaylec 65-8600 Alternator

12V 220A replacement alternator for selected Jeep Wrangler JK, Cherokee KK and Dodge Nitro KA 2.8L CRD diesel models. Features ECU-controlled charging and a 52mm six-rib pulley. Match the engine entries below.

Technical Specifications

• Brand: Jaylec
• Part number: 65-8600
• Voltage: 12V
• Rated output: 220A
• Adjuster hole: 1 x 8.5, 1 x 10 mm
• Pivot holes: 1 x 8.5, 1 x 11 mm
• Adjuster-to-pivot centres: 1 x 163, 1 x 165 mm
• Inside foot-to-foot / pivot-lug dimension: 4 x 70 mm
• Pulley diameter: 52 mm
• Pulley type: 6PV
• Charging control: ECU controlled

Part Number Cross References

Match the original alternator number and physical specification before ordering.

• 04727866AB, 04801338AB, 104210-6090

Vehicle Application List

• Dodge Nitro KA 2.8 CRD ENR, ENS diesel; 2007–2010
• Jeep Cherokee KK 2.8 CRD ENS diesel; 2008–2013
• Jeep Wrangler III JK 2.8 CRD ENS diesel; from 2007 (end date requires confirmation)
• Chrysler Grand Voyager, 2.8L CRD diesel, from 2007; match the original alternator reference and ECU-control connection for the exact build.

Applications apply to the specified engine and alternator configuration. Compare the original unit number, electrical connection and pulley before ordering.

Related air filters: K&N 33-2363 is listed for Nitro 2.8L diesel; K&N 33-5023 is listed for Wrangler JK 2.8L diesel (including 2007–2016). Choose the filter for the particular vehicle, not by alternator number. These are vehicle air-filter references; confirm the vehicle year and original airbox before ordering.
