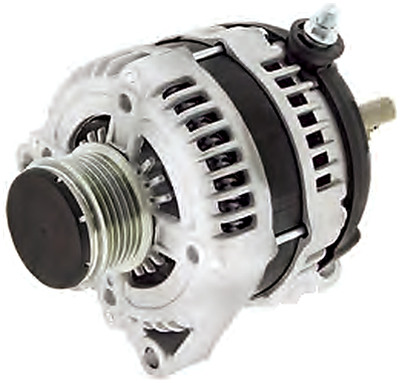

Jaylec Alternator 12V 160A for Chrysler Voyager 3.3L 2001–2006 (65-8480)


Jaylec Alternator 12V 160A for Chrysler Voyager 3.3L 2001–2006 (65-8480) - NZ Air Filter

In stock

Price:  NZD $494.52 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post




Recent View

12V 160A replacement alternator for selected Chrysler Voyager 3.3L models, covering the listed 2001–2006 application. Features ECU-controlled charging, a 58mm six-rib pulley and three-point mounting.

Fitment Note: This is an ECU-controlled unit. Match the original alternator reference and control connector, then compare the six-rib pulley and three mounting points before fitting. Mechanical similarity alone does not establish the required control compatibility.

Technical Specifications

  • Brand: Jaylec
  • Part number: 65-8480
  • Voltage: 12V
  • Amperage: 160A
  • Adjustment hole: 3 x 11 mm
  • Pivot hole: 3 x 11 mm
  • Adjustment-to-pivot distance: 118 mm
  • Inside feet / pivot lug dimension: 3 x 30 mm
  • Pulley diameter: 58 mm
  • Pulley section: 6PV
  • Unit weight: 8.0 kg
  • Control: ECU controlled

Part Number Cross References

Match the original alternator number together with the mounting, pulley and electrical connector.

  • 421000-0021, 421000-0022, 421000-0023, 421000-0024, 421000-0025, 421000-0026
  • 421000-0027, 421000-0493

Vehicle and Equipment Applications

  • Chrysler Voyager — 3.3L EGA V6 petrol, 2001–2006.
  • Chrysler Grand Voyager — 3.3L EGA V6 petrol; match the original alternator number and ECU-controlled charging system.

Related air filters: K&N 33-2206 for 2003 Chrysler Voyager 3.3L V6 petrol. Match the vehicle year, engine and original airbox before ordering a filter.
