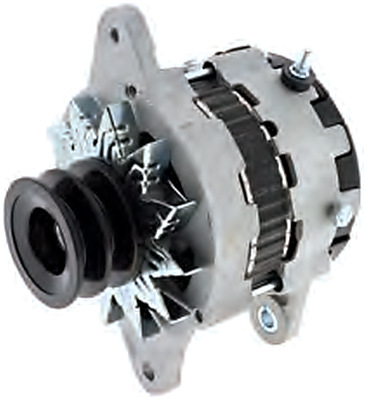

24V 55A brushless replacement alternator for selected Hino FH, FL, FM and FN trucks using EH300 or EH700 engines. Features an 82mm twin B-section pulley and 220mm adjustment-to-pivot spacing.

Technical Specifications

• Brand: Jaylec
• Part number: 65-3608
• Voltage: 24V
• Amperage: 55A
• Adjustment hole: 1 x M10
• Pivot hole: 2 x 12 mm
• Adjustment-to-pivot distance: 220 mm
• Inside feet / pivot lug dimension: 86 mm
• Pulley diameter: 82 mm
• Pulley section: 2B
• Unit weight: 11.0 kg
• Construction: Brushless

Part Number Cross References

Match the original alternator number together with the mounting, pulley and electrical connector.

• 27020-1060, 27040-1952, 1-81200-417-0, 02142-5090, 0201-102-3012, 0201-102-3013
• 0201-152-0115, 0201-152-0116, 0211-102-0012, 0211-102-0020, 0211-102-0221, 0211-102-0223
• 0211-102-1212, 0211-601-0021, 0211-601-0111, 0211-601-0113, 0214-102-1220, 0214-102-1221
• 0214-102-1310, 0214-102-1311, 0214-102-1320, 0214-102-1321, 0214-102-2010, 0214-102-2110
• 0214-501-0110, 0214-501-0114, 0214-501-0115, 0214-501-0117

Vehicle and Equipment Applications

• Hino FH, FL, FM and FN — EH300/EH700 engine families where the original alternator and bracket arrangement match.
