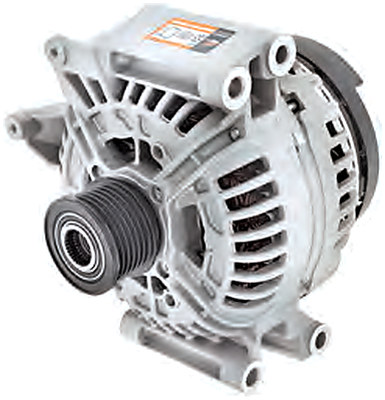

12V 200A replacement alternator for selected Mercedes-Benz C200 CDI, C220 CDI and E280 CDI diesel models. The listed C-Class variants use OM646 engines and the E280 uses OM648.

Technical Specifications

• Part number: 65-1761
• Brand: Jaylec
• Voltage: 12V
• Rated output: 200A
• Adjustment mounting hole(s): 2 x 10
• Pivot mounting hole(s): 1 x 10, 1 x 9
• Adjustment-to-pivot centres: 1 x 175, 1 x 163 mm
• Pivot span / lug length: 1 x 97, 3 x 93 mm
• Pulley diameter: 50 mm
• Pulley section: 6PV
• Weight: 8.0 kg

Part Number Cross References

Match the complete original part number and installation details before ordering.

• 0 121 545 902, 0 121 615 045, 0 124 625 002, 0 124 625 045, 0131540002, 0141540702, A 012 154 59 02, A 013 154 00 02
• A 014 154 07 02

Vehicle & Equipment Applications

Match the specified vehicle, engine and build range. Where no final year is listed, confirm the particular vehicle before ordering.

• Mercedes-Benz · C-Class · C 200 CDI - 2.1 · CL203 · OM 646.962 · Diesel · 2003–2008
• Mercedes-Benz · C-Class · C 220 CDI - 2.1 · CL203 · OM 646.963 · Diesel · 2004–2008
• Mercedes-Benz · C-Class · C 220 CDI - 2.1 · W203 · OM 646.963 · Diesel · 2003–2007
• Mercedes-Benz · E-Class · E 280 CDI - 3.2 · W211 · OM 648.961 · Diesel · 2004–2008

Related air filters: K&N lists 33-2158 and E-2018 for selected 2003–2005 C200 CDI 2.1L diesel airbox variants; E-2018 is also listed for 2006–2008 C200 CDI 2.1L. Choose by the original airbox and filter shape, not the model badge alone. These are air-filter references for the stated vehicles, not alternator interchange numbers. Match the original airbox and filter before ordering.
