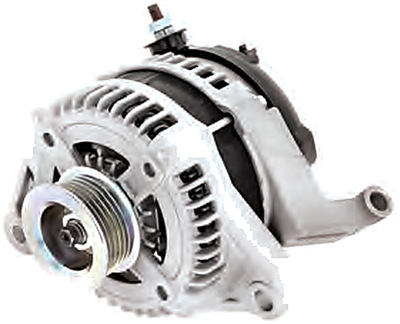

12V 160A replacement alternator for selected Dodge Nitro and Jeep Cherokee models with the 3.7L EKG V6 engine. Features ECU-controlled regulation and a 57mm six-rib pulley.

Technical Specifications

• Brand: Jaylec
• Part number: 65-8520
• System voltage: 12V
• Rated output: 160A
• Adjustment fixing: 2 × 10mm, 1 × M10
• Pivot fixing: 1 × 13mm
• Adjustment-to-pivot centres: 160mm
• Inside-foot / pivot-lug measurement: 68mm
• Pulley diameter: 57mm
• Pulley profile: 6PV
• Regulator control: ECU-controlled

Part Number Cross-References

Cross-reference part numbers:

• 056029914AD, 056029914AF, 056029914AL, 056041693AD, 056041693AE, 121000-4630, 121000-4631, 121000-4632
• 121000-4633, 421000-0470, 421000-0471, 421000-0472, 421000-0473, 421000-0530, TN121000-4630, TN121000-4631
• TN121000-4632

Vehicle & Equipment Applications

• Dodge Nitro KA — 3.7L EKG V6 petrol, 2007–2012.
• Jeep Cherokee KJ / KK — selected 3.7L EKG V6 petrol applications within 2001–2013, requiring the matching 160A ECU-controlled alternator.
• Jeep Liberty — selected 3.7L V6 applications with the matching original 160A alternator; confirm the vehicle build and connector.

Related air filters: K&N 33-2363 for 2009 Dodge Nitro 3.7L V6 petrol. Match the vehicle year, engine and original airbox before ordering a filter.
