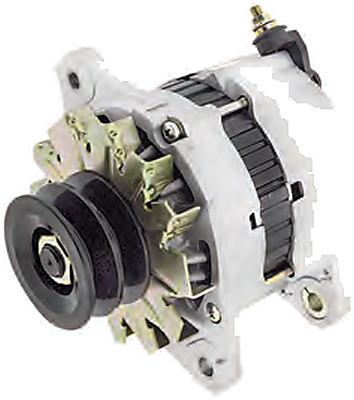

Jaylec 65-6087 Alternator

24V 70A brushless alternator for selected Kato, Kobelco and Mitsubishi 6D22 industrial installations. Features a 20mm shaft, 83mm twin-B-section pulley and 190mm adjuster-to-pivot centres.

Technical Specifications

• Brand: Jaylec
• Part number: 65-6087
• Voltage: 24V
• Rated output: 70A
• Adjuster hole: 1 x M12
• Pivot holes: 2 x 12 mm
• Adjuster-to-pivot centres: 190 mm
• Inside foot-to-foot / pivot-lug dimension: 80 mm
• Pulley diameter: 83 mm
• Pulley type: 2B
• Construction: Brushless
• Shaft diameter: 20 mm

Part Number Cross References

Match the original alternator number and physical specification before ordering.

• A004T70099, A004TU3586, A004TU6084, A004TU6088, A004TU6181, A004TU6584, A2T70772, A4T70099
• A4TU6084, A4TU6088, A4TU6181, A4TU6584, ME160918, ME215129, ME300073, ME300549

Vehicle Application List

• Selected Kato and Kobelco industrial installations using the matching 24V 70A brushless alternator.
• Mitsubishi industrial installations with the 6D22 engine; match the original alternator, 20mm shaft and 83mm twin-B-section pulley.

Applications apply to the specified engine and alternator configuration. Compare the original unit number, electrical connection and pulley before ordering.
