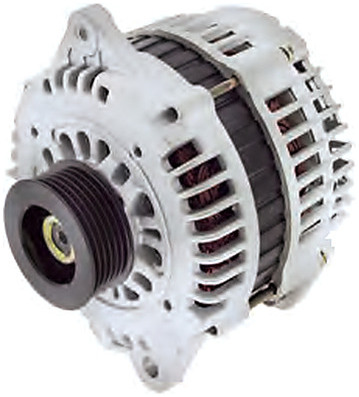

Jaylec Alternator 12V 110A for Nissan Patrol GU/Y61 TB48 4.8L Petrol (65-3134)


Jaylec Alternator 12V 110A for Nissan Patrol GU/Y61 TB48 4.8L Petrol (65-3134) - NZ Air Filter

In stock

Price:  NZD $368.07 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post




Recent View

12V 110A replacement alternator for selected Nissan Patrol GU/Y61 models with the TB48 4.8L petrol engine, covering the listed 2001–2007 application. Features a 64mm six-rib pulley and 170mm mounting centres.

Fitment Note: Confirm the TB48 petrol engine and compare the original alternator number, six-rib pulley and electrical connector. The 80mm inside mounting dimension and twin 10mm pivot holes should also match the existing installation.

Technical Specifications

  • Brand: Jaylec
  • Part number: 65-3134
  • Voltage: 12V
  • Amperage: 110A
  • Adjustment hole: 1 x M8
  • Pivot hole: 2 x 10 mm
  • Adjustment-to-pivot distance: 170 mm
  • Inside feet / pivot lug dimension: 80 mm
  • Pulley diameter: 64 mm
  • Pulley section: 6PV
  • Unit weight: 7.0 kg

Part Number Cross References

Match the original alternator number together with the mounting, pulley and electrical connector.

  • LR1100-718, LR1110-718, 23100-VC200, 23100-VD70A

Vehicle and Equipment Applications

  • Nissan Patrol GU/Y61 — TB48 4.8L petrol, 2001–2007.

Related air filters: K&N E-9266 is listed for the 2005 Nissan Patrol 4.8L petrol application. Confirm the original airbox before ordering the filter.
