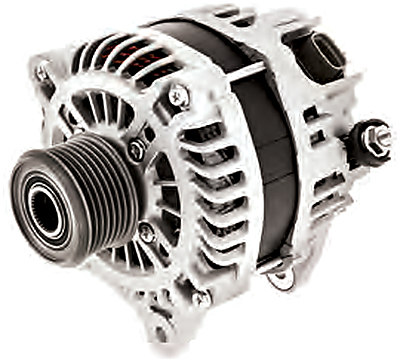

Jaylec Alternator 12V 170A for Subaru Outback and Forester EE20 2.0L Diesel (65-6786)


Jaylec Alternator 12V 170A for Subaru Outback and Forester EE20 2.0L Diesel (65-6786) - NZ Air Filter

In stock

Price:  NZD $520.53 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post




Recent View

12V 170A replacement alternator for selected Subaru Outback BR and Forester SH/SJ models with the EE20 2.0L diesel engine. Features a 55mm seven-rib pulley and 151mm mounting centres.

Fitment Note: Confirm the EE20 diesel engine and compare the original alternator number, seven-rib drive and regulator connection. Subaru model names also cover petrol variants; use the engine and charging-unit reference when selecting this part.

Technical Specifications

  • Brand: Jaylec
  • Part number: 65-6786
  • Voltage: 12V
  • Amperage: 170A
  • Adjustment hole: 1 x 9 mm
  • Pivot hole: 2 x 8 mm
  • Adjustment-to-pivot distance: 151 mm
  • Inside feet / pivot lug dimension: 80 mm
  • Pulley diameter: 55 mm
  • Pulley section: 7PV
  • Unit weight: 8.0 kg

Part Number Cross References

Match the original alternator number together with the mounting, pulley and electrical connector.

  • A002TX2381, A003TX0781A, A2TX2381, A3TX0781A, 23700-AA660, 23700-AA661

Vehicle and Equipment Applications

  • Subaru Outback BR — 2.0L EE20 diesel, 2009–2015.
  • Subaru Forester SH/SJ — 2.0L EE20 diesel applications; exact build match required.
  • Subaru Legacy — 2.0L EE20 diesel, from 2009; final year and original alternator match require confirmation.

Related air filters: K&N 33-2304 is a shared-vehicle reference for selected Outback 2.0L diesel factory airboxes (including 2012). Confirm the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
