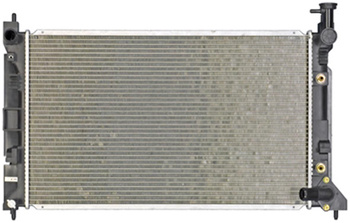

NZA788X is a replacement engine cooling radiator for selected Mitsubishi Colt RG 1.5 Auto/CVT 2004–2012 models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Mitsubishi Colt RG 1.5L 4A91 petrol, automatic, 06/12
• Mitsubishi Colt RG 1.5L 4G15 DOHC 16V non-turbo petrol, CVT automatic, 04/06

Technical Specifications:

• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 380x625x16mm
• Hose Outlets: 29mm inlet, 29mm outlet
• Header Plates: 398 × 32 mm top / 398 × 46 mm bottom
• Oil Cooler Size: 200 mm

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: MN135960
• Jayrad: JR788J
• Adrad: MIT047
• Koyorad: PL031950
• Repco: RAD788X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation. The 4G15 application is limited to naturally aspirated (non-turbo) engines with CVT automatic transmission.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
