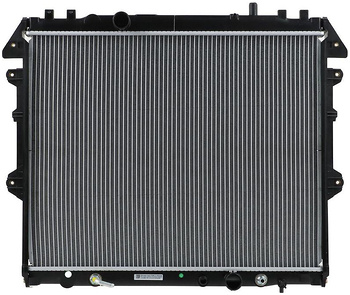

NZA730X is a replacement engine cooling radiator for selected Toyota Hilux KUN16/KUN26R 3.0 1KD-FTV Auto models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Toyota Hilux KUN16/KUN26R 3.0L 1KD-FTV turbo diesel, automatic, 12/15

Technical Specifications:

• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 650x525x24mm
• Oil Cooler Length: 375 mm

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 16400-0L120, 16400-0L130
• Jayrad: JR730J
• Adrad: TOY103
• Koyorad: PL011832
• Repco: RAD730X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
