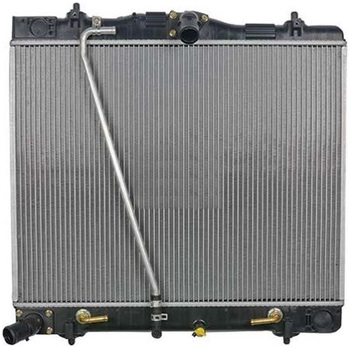

NZA839X is a replacement engine cooling radiator for selected Toyota Hiace TRH 2.7 2TR-FE Auto models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Toyota Hiace TRH 2.7L 2TR-FE petrol, automatic, 17/19

Technical Specifications:

• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 660x510x36mm
• Hose Outlets: 38mm inlet, 38mm outlet
• Header Plates: 675 × 44 mm top and bottom
• Oil Cooler Size: 385 mm

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 16400-75470, 16400-7A330
• Jayrad: JR839J
• Adrad: TOY124
• Koyorad: PL011575
• Repco: RAD839X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
