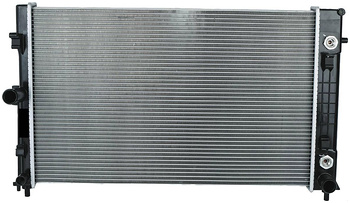

NZA587X is a replacement engine cooling radiator for selected Holden Commodore & Adventra VZ 3.6 V6 Auto models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Holden Commodore VZ 3.6L V6 petrol, automatic, 2006 sedan; 2007 wagon/ute
• Holden Adventra VZ 3.6L V6 petrol, automatic, 2006

Technical Specifications:

• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 430x675x32mm
• Hose Outlets: 35mm inlet, 35mm outlet
• Oil Cooler Length: 295 mm

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 92149258, 92182068
• Jayrad: JR587J
• Adrad: HOL038
• Koyorad: PL011810
• Repco: RAD587X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
