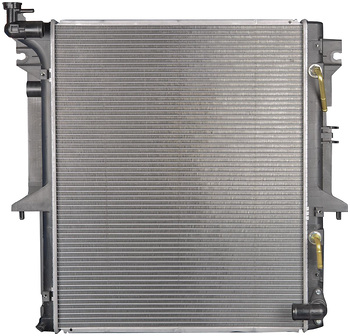

NZA1528X is a replacement engine cooling radiator for selected Mitsubishi Triton ML/MN & Challenger Auto models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Mitsubishi Triton ML/MN (KA/KB) 2.5L 4D56 turbo diesel, automatic, 14/15
• Mitsubishi Challenger PB/PC (KG/KH) 2.5L 4D56 turbo diesel, automatic, 14/15

Technical Specifications:

• NZA Part Number: NZA1528X
• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 638x525x26mm
• Hose Outlets: 34mm inlet, 34mm outlet
• Oil Cooler Length: 350 mm

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: MN135002
• Jayrad: JR1528J
• Adrad: MIT051
• Koyorad: PL031882
• Repco: RAD1528X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation. Match the lower hose outlet angle to the original radiator; ML/MN applications can use straight or angled lower pipes.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
