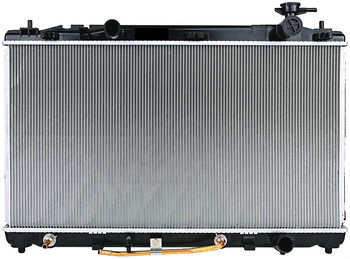

NZA1481X is a replacement engine cooling radiator for selected Toyota Camry ACV40 2.4 Auto 2006–2011 models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Toyota Camry ACV40 2.4L 2AZ-FE petrol, automatic, 07/2006–09/2011

Technical Specifications:

• NZA Part Number: NZA1481X
• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 730x400x16mm
• Hose Outlets: 34mm inlet, 34.5mm outlet
• Radiator Cap: Sold separately

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 16400-0H210
• Jayrad: JR1481J
• Adrad: TOY108
• Koyorad: PL011850
• Repco: RAD1481X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
