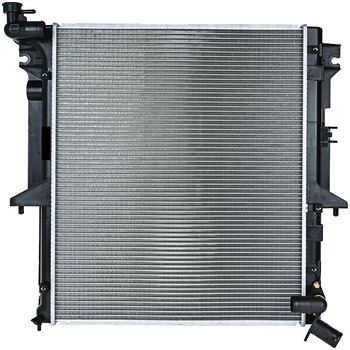

NZA1529X is a replacement engine cooling radiator for selected Mitsubishi Triton ML/MN 4G64/4D56 Manual models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Mitsubishi Triton ML/MN 2.4L 4G64 petrol (including LPG), cab chassis/ute, manual, 14/15
• Mitsubishi Triton ML/MN 2.5L 4D56 DI-D turbo diesel, cab chassis/ute, 2WD/4WD, manual, 14/15

Technical Specifications:

• NZA Part Number: NZA1529X
• Transmission: Manual
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 638x525x26mm
• Hose Outlets: 34mm inlet, 34mm outlet

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: MN135002
• Jayrad: JR1529J
• Adrad: MIT051
• Koyorad: PL031882
• Repco: RAD1529X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation. Match the lower hose outlet angle to the original radiator; ML/MN applications can use straight or angled lower pipes.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
