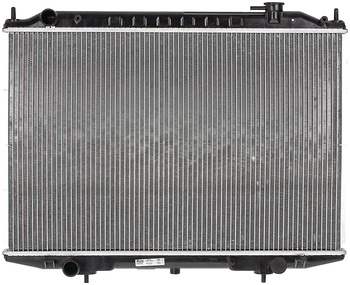

NZA1786X is a replacement engine cooling radiator for selected Nissan Navara D22 models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Nissan Navara D22 4WD, 2.5L YD25DDTi turbo diesel, 11/15

Technical Specifications:

• NZA Part Number: NZA1786X
• Transmission: Automatic / Manual
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 691x450x32mm
• Hose Outlets: 35mm inlet, 35mm outlet

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 21400-VM00A, 21400-VM00B
• Jayrad: JR1786J
• Adrad: NIS058
• Koyorad: PL022150
• Repco: RAD1786X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
