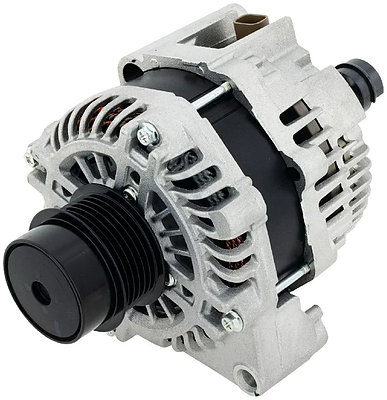

Jaylec 65-6747G Alternator

12V 140A replacement alternator for selected Holden Commodore VE Series II V8 applications. Fitted with a 6pv clutch / decoupler pulley.

Fitment note: Match the original equipment alternator number before ordering. These applications use different regulator versions; the vehicle model and engine alone are not sufficient to select the unit.

Technical Specifications

• Brand: Jaylec
• Part number: 65-6747G
• Voltage: 12V
• Rated output: 140A
• Mounting centres: 140 mm
• Mount leg inside dimension: 50 mm
• Top mounting hole: 10 mm
• Bottom mounting hole: 10 mm
• Shaft diameter: 17 mm
• Pulley diameter: 57 mm
• Pulley grooves: 6
• Regulator: Internal
• Connection plug: EP56
• Terminals: B+, FR, L
• Excitation: External
• Earth polarity: Negative
• Pulley: 6PV clutch / decoupler pulley

Vehicle Application List

• Holden Commodore VE Series II 6.0L V8, 2012–2013, with the matching decoupler-pulley alternator and regulator version

Match the original alternator number and compare the electrical connection, mounting and pulley before ordering.

Related air filters: K&N 33-2919 is listed for the Commodore 6.0L V8 factory airbox, including 2012. Confirm the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
