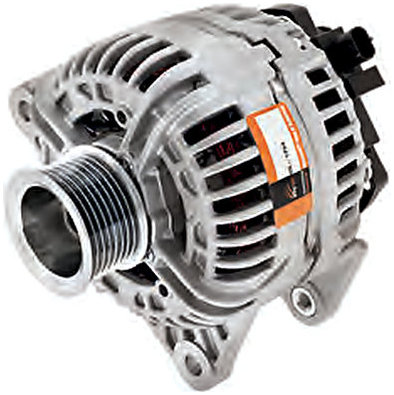

12V 136A replacement alternator for selected Dodge Ram 2500 and 3500 models with the 5.9L engine, covering the listed 2003–2005 application. Features ECU-controlled charging and a 58mm eight-rib pulley.

Technical Specifications

• Brand: Jaylec
• Part number: 65-1794
• Voltage: 12V
• Amperage: 136A
• Adjustment hole: 2 x 12 mm, 2 x M12
• Pivot hole: 2 x 12 mm, 2 x M12
• Adjustment-to-pivot distance: 2 x 158 mm
• Inside feet / pivot lug dimension: 2 x 68 mm
• Pulley diameter: 58 mm
• Pulley section: 8PV
• Unit weight: 8.0 kg
• Control: ECU controlled

Part Number Cross References

Match the original alternator number together with the mounting, pulley and electrical connector.

• 0 124 525 041

Vehicle and Equipment Applications

• Dodge Ram 2500 and 3500 — 5.9L inline-six diesel, 2003–2005; confirm the original alternator and ECU-controlled charging connection. The detailed Ram 2500 application identifies engine code ETH.

Related air filters: K&N E-0776 is listed for the 2004 Dodge Ram 2500 5.9L inline-six diesel application. These are air-filter references for the stated vehicles, not alternator interchange numbers. Match the original airbox and filter before ordering.
