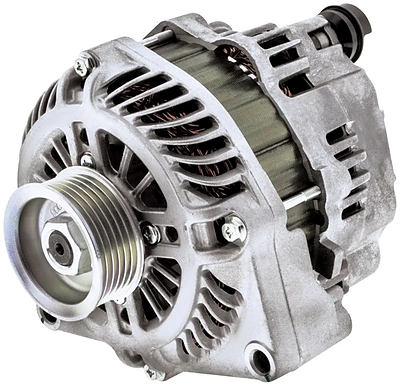

Jaylec 65-6748G Alternator

12V 140A replacement alternator for selected Holden Commodore VE V8 LS2 / LS3 / L77 applications. Fitted with a 6pv fixed pulley.

Fitment note: Match the original equipment alternator number before ordering. These applications use different regulator versions; the vehicle model and engine alone are not sufficient to select the unit.

Technical Specifications

• Brand: Jaylec
• Part number: 65-6748G
• Voltage: 12V
• Rated output: 140A
• Mounting centres: 140 mm
• Mount leg inside dimension: 50 mm
• Top mounting hole: 10 mm
• Bottom mounting hole: 10 mm
• Shaft diameter: 17 mm
• Pulley diameter: 57 mm
• Pulley grooves: 6
• Regulator: Internal
• Connection plug: EP56
• Terminals: B+, FR, L
• Excitation: External
• Earth polarity: Negative
• Pulley: 6PV fixed pulley

Vehicle Application List

• Holden Commodore VE V8 LS2, LS3 or L77 applications using this original alternator number and fixed pulley

Match the original alternator number and compare the electrical connection, mounting and pulley before ordering.

Related air filters: K&N 33-2919 is a related filter for selected VE 6.0L V8 factory airboxes; other V8 configurations need their own filter check. Confirm the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
