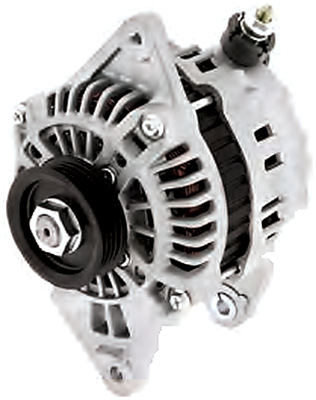

Jaylec Alternator 12V 90A for Mitsubishi Triton 2.4L 4G64 (65-6723)


Jaylec Alternator 12V 90A for Mitsubishi Triton 2.4L 4G64 (65-6723) - NZ Air Filter

In stock

Price:  NZD $356.68 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post




Recent View

12V 90A replacement alternator for selected Mitsubishi Triton GL/ML models with the 2.4L 4G64 petrol engine. This four-pin regulator version has a 60mm four-rib pulley and 175mm mounting centres.

Selection & Installation Note: Compare the four-rib pulley and four-pin G / S / L / F connector with the original 4G64 petrol alternator. Check the 175mm mounting centres and 78mm internal span.

Technical Specifications

  • Brand: Jaylec
  • Part number: 65-6723
  • Voltage: 12V
  • Output: 90A
  • Adjustment hole: 1 x M8
  • Pivot hole: 2 x 8.5 mm
  • Adjustment-to-pivot centres: 175 mm
  • Inside foot-to-foot / pivot lug length: 78 mm
  • Pulley diameter: 60 mm
  • Pulley type: 4PV
  • Weight: 6.0 kg

Part Number Cross References

  • 1800A111
  • A005TG0791ZT
  • A5TG0791ZT

Vehicle & Equipment Applications

  • Mitsubishi Triton GL, ML 2.4 — 4G64, Petrol, from 2008 (end year not specified).

Related air filters: K&N 33-2951 is a shared-vehicle reference for selected Triton 2.4L petrol factory airboxes (including 2009). Confirm the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
