Mahle Alternator 12V 120A for Deutz 5-Series Tractors (65-2672)


Mahle Alternator 12V 120A for Deutz 5-Series Tractors (65-2672) - NZ Air Filter

In stock

Price:  NZD $626.35 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post




Recent View

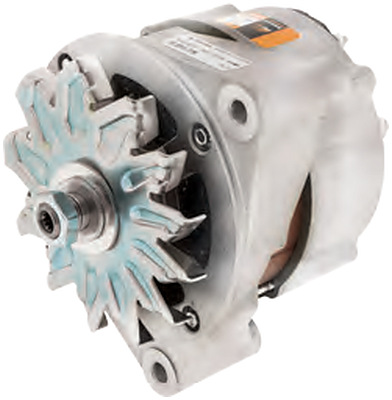

Mahle 65-2672 Alternator

Mahle 120A alternator for selected Deutz 5-Series tractor applications. The unit uses internal regulation and a 17 mm shaft; check the original unit number and mounting before ordering.

Fitment note: Match the original alternator reference, 17 mm shaft and 155 mm adjuster-to-pivot centres. This listing identifies a 120A unit; tractor make alone does not establish the correct electrical and mounting version.

Technical Specifications

  • Brand: Mahle
  • Part number: 65-2672
  • Voltage: 12V
  • Rated output: 120A
  • Adjuster hole: 1 x 10
  • Pivot holes: 1 x 10
  • Adjuster-to-pivot centres: 155 mm
  • Inside foot-to-foot / pivot-lug dimension: 56 mm
  • Regulator: Internal
  • Shaft diameter: 17 mm

Part Number Cross References

Match the original alternator number and physical specification before ordering.

  • 11.204.137, 11.204.717, 11.204.779, AAK4954, AAK4990, AAK3869, IA1473, MG165

Vehicle Application List

  • Deutz-Fahr 5-Series 5100 and 5100 TTV tractors — TCD 3.6 L04 Tier 4i diesel, from 2013; confirm machine serial number and original 120A alternator. No final build year is specified.

Applications apply to the specified engine and alternator configuration. Compare the original unit number, electrical connection and pulley before ordering.
