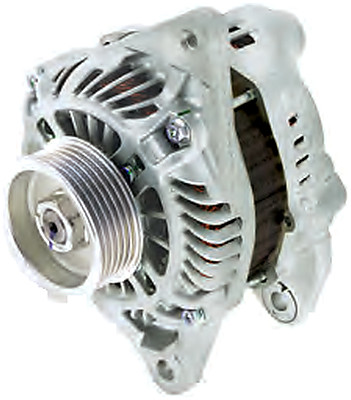

Jaylec Alternator 12V 90A for Mitsubishi Triton ML / MN 2.5L 4D56 Diesel (65-6693)


Jaylec Alternator 12V 90A for Mitsubishi Triton ML / MN 2.5L 4D56 Diesel (65-6693) - NZ Air Filter

In stock

Price:  NZD $355.53 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post




Recent View

12V 90A replacement alternator for selected Mitsubishi Triton ML and MN models with the 4D56 2.5L diesel engine. Features a six-rib 70mm pulley and 175mm mounting centres.

Fitment note: Match the common-rail 4D56/4D56T engine and original four-pin connector. A 120A alternative requires a separate fitment check and must not be assumed interchangeable.

Technical Specifications

  • Part number: 65-6693
  • Brand: Jaylec
  • Voltage: 12V
  • Rated output: 90A
  • Adjustment mounting hole(s): 1 x M8
  • Pivot mounting hole(s): 2 x 10.5
  • Adjustment-to-pivot centres: 175 mm
  • Pivot span / lug length: 66 mm
  • Pulley diameter: 70 mm
  • Pulley section: 6PV
  • Weight: 7.0 kg

Part Number Cross References

Match the complete original part number and installation details before ordering.

  • 1800A007, A005TG0491ZT, A5TG0491ZT

Vehicle & Equipment Applications

Match the specified vehicle, engine and build range. Where no final year is listed, confirm the particular vehicle before ordering.

  • Mitsubishi · Triton · ML, MN · 2.5 DiD · 4D56 · Diesel · 2007–2015

Related air filters: K&N 33-2951 is listed for Mitsubishi Triton 2.5L diesel, including 2010. Check the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
