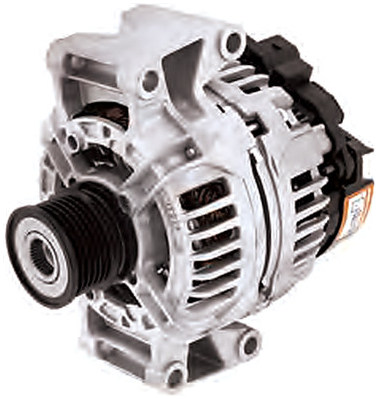

Jaylec Alternator 12V 90A for Mercedes-Benz Sprinter 906 2.2 CDI OM646 (65-1793)


Jaylec Alternator 12V 90A for Mercedes-Benz Sprinter 906 2.2 CDI OM646 (65-1793) - NZ Air Filter

In stock

Price:  NZD $423.87 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post




Recent View

12V 90A replacement alternator for Mercedes-Benz Sprinter 906 models with the 2.2L OM646 CDI diesel engine, covering selected 2006–2009 vehicles. Features a 50mm six-rib pulley.

Selection & Installation Note: Match the OM646 application, six-rib pulley and mounting positions to the original alternator. Pulley reference 53-1001A is a service component, not an alternative complete alternator.

Technical Specifications

  • Brand: Jaylec
  • Part number: 65-1793
  • Voltage: 12V
  • Output: 90A
  • Adjustment hole: 1 x 9 mm
  • Pivot hole: 1 x 9 mm
  • Adjustment-to-pivot centres: 1 x 172, 1 x 163 mm
  • Inside foot-to-foot / pivot lug length: 4 x 70 mm
  • Pulley diameter: 50 mm
  • Pulley type: 6PV
  • Weight: 7.0 kg

Part Number Cross References

  • 0 124 325 169
  • 0 124 325 170
  • 646154000280

Vehicle & Equipment Applications

  • Mercedes-Benz Sprinter 906 — 2.2L CDI OM646 diesel, 2006–2009.

Related air filters: K&N 33-2391 is listed for the 2008 Mercedes-Benz Sprinter 2.1L diesel application, commonly described as 2.2 CDI. These are air-filter references for the stated vehicles, not alternator interchange numbers. Match the original airbox and filter before ordering.
