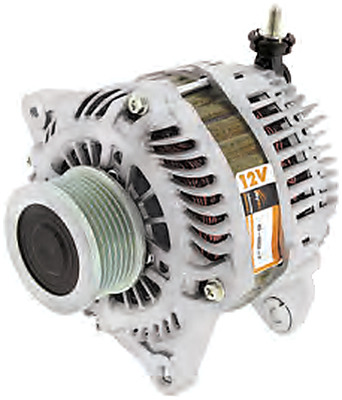

12V 150A high-output alternator for selected Nissan Navara D40 and Pathfinder R51 models with the 2.5L YD25DDTi diesel engine. Features a 73mm seven-rib pulley and 162mm mounting centres.

Technical Specifications

• Brand: Jaylec
• Part number: 65-6659-1
• Voltage: 12V
• Amperage: 150A
• Adjustment hole: 1 x 10 mm
• Pivot hole: 2 x 10 mm
• Adjustment-to-pivot distance: 162 mm
• Inside feet / pivot lug dimension: 80 mm
• Pulley diameter: 73 mm
• Pulley section: 7PV
• Unit weight: 8.0 kg
• Configuration: High output

Part Number Cross References

Match the original alternator number together with the mounting, pulley and electrical connector.

• A003TJ0781, A3TJ0781

Vehicle and Equipment Applications

• Nissan Navara D40 2.5L YD25DDTi diesel, 2007–2015, with matching 150A alternator, seven-rib pulley and electrical connection.
• Nissan Pathfinder R51 2.5L YD25DDTi diesel, 2007–2013; match the original alternator number, pulley and connector.

Related air filters: K&N 33-2080 and 33-2980 are listed for different Navara D40 2.5L diesel airbox variants. Match the original filter: 33-2080 references Nissan 16546EB300/16500EB30B; 33-2980 references 16546EB70A. The two filters are not interchangeable. Check the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
