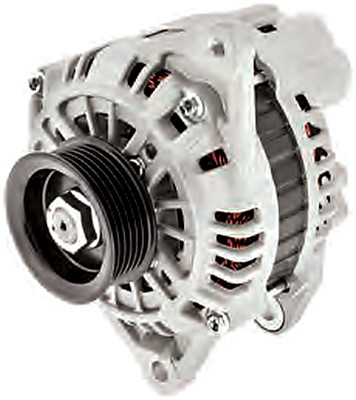

12V 120A replacement alternator for selected Mitsubishi Triton ML/MN and Challenger models with the 2.5L 4D56 common-rail diesel engine. Features a 65mm six-rib pulley and 66mm mounting-foot dimension.

Technical Specifications

• Brand: Jaylec
• Part number: 65-6693-1
• System voltage: 12V
• Rated output: 120A
• Adjustment fixing: 1 × M8
• Pivot fixing: 2 × 10.5mm
• Adjustment-to-pivot centres: 175mm
• Inside-foot / pivot-lug measurement: 66mm
• Pulley diameter: 65mm
• Pulley profile: 6PV
• Version: High output

Part Number Cross-References

Cross-reference part numbers:

• 1800A007, 1800A008, A003TG3391, A005TG0491, A3TG3391, A5TG0491

Vehicle & Equipment Applications

• Mitsubishi Triton ML/MN 2.5L 4D56 common-rail diesel, 2007–2015.
• Mitsubishi Challenger II PB/PC, KH4/KG4 (KH4W), 2.5L 4D56 HP DI-D diesel 4WD, from 2009; end year and original alternator match require confirmation.

Related air filters: K&N 33-2951 is a shared-vehicle reference for selected Triton 2.5L diesel factory airboxes (including the 2010 application). Confirm the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
