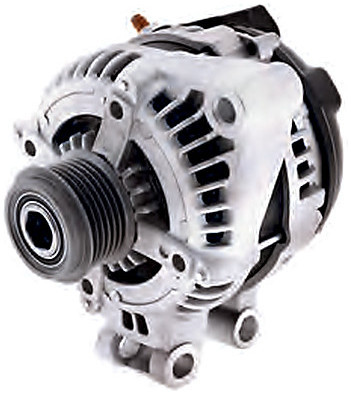

Jaylec Alternator 12V 150A for Land Rover Discovery 4 & Range Rover Sport 3.0 TDV6 (65-8528-1)


Jaylec Alternator 12V 150A for Land Rover Discovery 4 & Range Rover Sport 3.0 TDV6 (65-8528-1) - NZ Air Filter

In stock

Price:  NZD $514.26 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post




Recent View

12V 150A replacement alternator for selected Land Rover Discovery 4 and Range Rover Sport models with the 3.0L 306DT diesel engine. Features a 52mm six-rib pulley and a multiple-lug mounting arrangement.

Selection & Installation Note: Match the single-pin electrical connector and original alternator number before fitting. Other 3.0L Land Rover charging units may have different control and mounting arrangements.

Technical Specifications

  • Brand: Jaylec
  • Part number: 65-8528-1
  • Voltage: 12V
  • Output: 150A
  • Adjustment hole: 1 x 12 mm
  • Pivot hole: 1 x 12, 1 x 14.5 mm
  • Inside foot-to-foot / pivot lug length: 2 x 50, 1 x 40 mm
  • Pulley diameter: 52 mm
  • Pulley type: 6PV
  • Weight: 8.0 kg

Part Number Cross References

  • 104210-2420
  • 104210-2421
  • 104210-2422
  • 104210-2423
  • AH22-10300-AB
  • AH22-10300-AC
  • AH22-10300-AD
  • LR013847
  • LR065866
  • LR072756

Vehicle & Equipment Applications

  • Land Rover Discovery IV L319 3.0 TD 4x4 — 306DT, Diesel, 2009–2017.
  • Land Rover Range Rover Sport L320, L494 3.0 D 4x4 — 306DT, Diesel, 2009–2016.

Related air filters: K&N 33-2333 for the 2012–2017 Discovery IV 3.0L V6 diesel. Match the vehicle year, engine and original airbox before ordering a filter.
