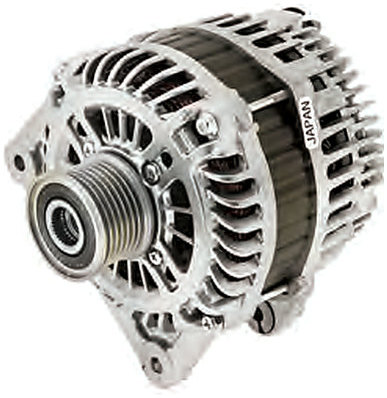

12V 150A replacement alternator for selected Nissan X-Trail, Qashqai and Renault Koleos models with the 2.0 dCi M9R diesel engine. Features a 49mm seven-rib pulley and 127mm mounting centres.

Technical Specifications

• Brand: Jaylec
• Part number: 65-6690-1
• System voltage: 12V
• Rated output: 150A
• Adjustment fixing: 2 × M8
• Pivot fixing: 2 × M8
• Adjustment-to-pivot centres: 127mm
• Inside-foot / pivot-lug measurement: 58mm
• Pulley diameter: 49mm
• Pulley profile: 7PV

Part Number Cross-References

Cross-reference part numbers:

• A003TJ2481ZE, A3TJ2481, 23100-JD71A, 23100-JG71A

Vehicle & Equipment Applications

• Nissan X-Trail T31 2.0 dCi M9R diesel, 2008–2014.
• Nissan Qashqai J10 2.0 dCi M9R diesel, 2007–2011; match the original alternator reference.
• Renault Koleos I HY/H45 2.0 dCi M9R diesel, from 2008; confirm the exact engine suffix and build date because no final year is specified.

Related air filters: K&N 33-2944 is listed for Nissan X-Trail 2.0L diesel, including 2010. Check the filter separately for Qashqai and Koleos variants. Check the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
