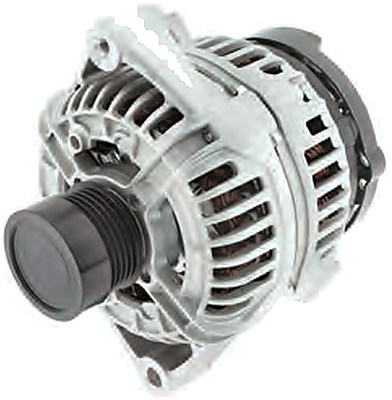

12V 120A replacement alternator for selected Holden Astra TS and AH models. Features a 54mm five-rib pulley and 56mm mounting-foot dimension. Match the engine and original alternator number before ordering.

Technical Specifications

• Brand: Jaylec
• Part number: 65-6209-3
• System voltage: 12V
• Rated output: 120A
• Adjustment fixing: 1 × M8
• Pivot fixing: 1 × 11mm, 1 × 10mm
• Adjustment-to-pivot centres: 184mm
• Inside-foot / pivot-lug measurement: 56mm
• Pulley diameter: 54mm
• Pulley profile: 5PV

Part Number Cross-References

Cross-reference part numbers:

• 0 124 425 009, 0 124 515 031, F00M119928, F00M991128, 9195336

Vehicle & Equipment Applications

• Holden Astra TS 1.8L petrol, X18XE1 or Z18XE engine; confirm the original alternator and build date.
• Holden Astra AH 1.8L Z18XE petrol applications with the matching five-rib alternator; do not select by AH model name alone.
• Holden Astra TS 2.0L turbo petrol, Z20LET/Z20LER, 2002–2004; match the original alternator.
• Holden Tigra XC 1.8L Z18XE petrol, 2005–2007.
• Holden Vectra ZC 2.2L Z22SE petrol, 2002–2006.

Related air filters: K&N 33-2787 is listed for the Holden Astra 1.8L petrol, including 2003 models; it is not a blanket filter match for the Tigra or Vectra applications. Check the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
