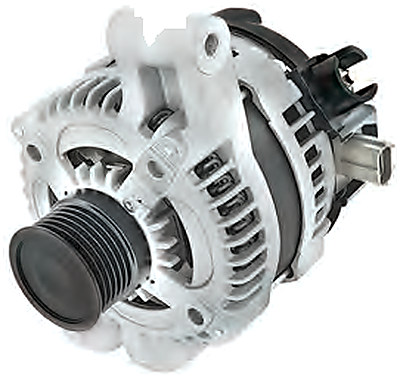

12V 120A replacement alternator for selected Ford Focus LS, LT and LV models with A0DB or A0DE 2.0L petrol engines. Features a six-rib 53mm pulley and 194mm mounting centres.

Technical Specifications

• Part number: 65-8513
• Brand: Jaylec
• Voltage: 12V
• Rated output: 120A
• Adjustment mounting hole(s): 1 x 8
• Pivot mounting hole(s): 2 x 8
• Adjustment-to-pivot centres: 194 mm
• Pivot span / lug length: 72 mm
• Pulley diameter: 53 mm
• Pulley section: 6PV
• Weight: 8.0 kg
• Pulley operation: Clutch pulley

Part Number Cross References

Match the complete original part number and installation details before ordering.

• 104210-3760, 104210-3761, 104210-3762, 104210-5790, 1530299, 3M5T-10300-BC, 3M5T-10300-VA, 3M5T-10300-VB
• 3M5T-10300-VC, 3M5T-10300-VD, 8688170, 8603271, 30667071, 36002574

Vehicle & Equipment Applications

Match the specified vehicle, engine and build range. Where no final year is listed, confirm the particular vehicle before ordering.

• Ford Focus LS / LT / LV — 2.0L A0DB / A0DE petrol, 2005–2011.
• Selected Ford Focus 1.8L petrol applications — original alternator reference, regulator connector and mounting must match.
• Volvo S40 / V50 — selected 1.8L or 2.0L petrol applications from 2004; confirm the original alternator and build date.
• Volvo C30 — selected 1.8L or 2.0L petrol applications; confirm the original alternator and build date.

Related air filters: For the 2007 Focus II 2.0L petrol airbox variants, K&N lists 33-2877 to July 2007 and E-2993 from August 2007. These are different filter configurations. Match the vehicle year, engine and original airbox before ordering a filter.
