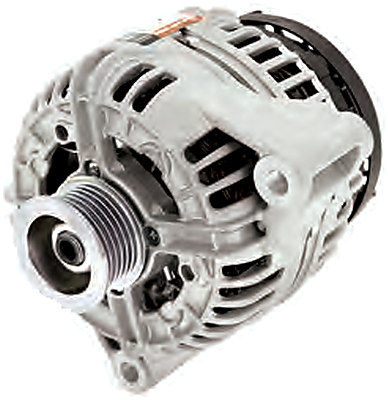

Jaylec 65-1754 Alternator

12V 120A replacement alternator for selected Mercedes-Benz C-Class, CLK, M-Class and SLK petrol models with M112 engines. Features a 50mm six-rib pulley. Check the engine and chassis combinations below for the supported variants.

Technical Specifications

• Brand: Jaylec
• Part number: 65-1754
• Voltage: 12V
• Rated output: 120A
• Adjuster hole: 1 x 10 mm
• Pivot holes: 1 x 10 mm
• Adjuster-to-pivot centres: 156 mm
• Inside foot-to-foot / pivot-lug dimension: 56 mm
• Pulley diameter: 50 mm
• Pulley type: 6PV

Part Number Cross References

Match the original alternator number and physical specification before ordering.

• 0 124 515 056, 0 124 515 132, 0131548102, A 011 154 64 02, A 011 154 91 02, A 013 154 81 02, SG12B023

Vehicle Application List

• Mercedes C-Class C 240 - 2.6 S203 M 112.912 petrol; 2000–2007
• Mercedes C-Class C 240 - 2.6 W203 M 112.912 petrol; 2000–2007
• Mercedes C-Class C 32 AMG Kompressor - 3.2 CL203 M 112.961 petrol; 2002–2008
• Mercedes C-Class C 32 AMG Kompressor - 3.2 W203 M 112.961 petrol; 2001–2007
• Mercedes C-Class C 320 - 3.2 CL203 M 112.946 petrol; 2002–2008
• Mercedes C-Class C 320 - 3.2 W203 M 112.946 petrol; 2000–2007
• Mercedes CLK CLK 240 - 2.6 A209 M 112.912 petrol; 2003–2010
• Mercedes CLK CLK 240 - 2.6 C209 M 112.912 petrol; 2002–2009
• Mercedes CLK CLK 320 - 3.2 A209 M 112.955 petrol; 2003–2010
• Mercedes CLK CLK 320 - 3.2 C209 M 112.955 petrol; 2002–2009
• Mercedes M-Class ML 320 - 3.2 W163 M 112.942 petrol; 1998–2002
• Mercedes M-Class ML 350 - 3.7 W163 M 112.970 petrol; 2002–2005
• Mercedes SLK 320 - 3.2 R170 M 112.947 petrol; 2000–2004

Applications apply to the specified engine and alternator configuration. Compare the original unit number, electrical connection and pulley before ordering.

Related air filters: K&N 33-2181 is listed for the Mercedes-Benz C240 2.6L petrol, 2000–2005. These are air-filter references for the stated vehicles, not alternator interchange numbers. Match the original airbox and filter before ordering.
