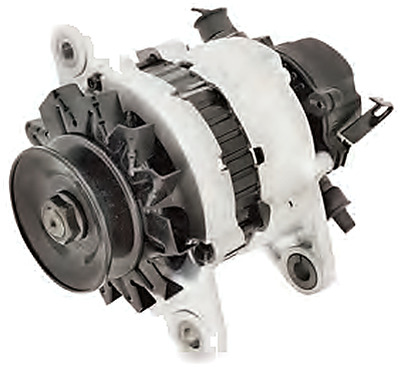

Jaylec 65-6600 Alternator 24V 25A alternator for selected Mitsubishi Canter FE trucks with 4D30, 4D31 or 4D32 diesel engines. Features an 84mm single-A-section pulley and 81mm mounting span. Fitment note: Check the exact FE chassis and engine code, then compare the 175mm mounting centres. The 25A unit must not be selected solely because another Canter alternator shares the same 24V system rating. Technical Specifications - Brand: Jaylec
- Part number: 65-6600
- Voltage: 24V
- Rated output: 25A
- Adjuster hole: 1 x M12
- Pivot holes: 2 x 12.5 mm
- Adjuster-to-pivot centres: 175 mm
- Inside foot-to-foot / pivot-lug dimension: 81 mm
- Pulley diameter: 84 mm
- Pulley type: 1A
Part Number Cross References Match the original alternator number and physical specification before ordering. - 37300-41012, AD225412, TA000B06101, 34468-25100, A002T71473, A002T71478, A002T71483, A002T71583
- A002T71978, A002T71983, A002T72286, A002T72383, A002T72483, A002T73876, A002T74776, A003T76182
- A003T76682, A004T37886, A004T58699, A004T58799, A004T58999, A005T22583, A005T70178, A005T70183
- A005T70270, A005T70283, A005T72285, A005T79283, A2T61179, A2T68171, A2T70283, A2T71473
- A2T71478, A2T71483, A2T71583, A2T71978, A2T71983, A2T72286, A2T72383, A2T72483
- A2T73876, A2T74776, A3T76182, A3T76682, A4T37886, A4T58699, A4T58799, A4T58999
- A5T22583, A5T70178, A5T70183, A5T70270, A5T70283, A5T72285, A5T79283, ME007396
- ME007533, ME017506, ME017550, ME017552, ME017560, ME017561, ME017562, ME017591
- ME017600, ME037640
Vehicle Application List - Mitsubishi Canter FE339, FE434, FE439, FE444 and FE449 with 4D30, 4D31 or 4D32 diesel engine and matching 24V 25A alternator.
- For 4D31/4D32 Canter FE applications, the supplier specifies builds from 1986; confirm the individual build and original alternator because no final year is specified.
Applications apply to the specified engine and alternator configuration. Compare the original unit number, electrical connection and pulley before ordering. |
