Magneti Marelli Alternator 12V 85A for Perkins Passenger-Side Mount (65-5020G)


Magneti Marelli Alternator 12V 85A for Perkins Passenger-Side Mount (65-5020G) - NZ Air Filter

In stock

Price:  NZD $453.31 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post




Recent View

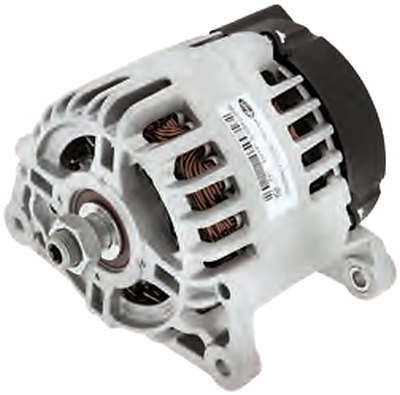

Magneti Marelli 65-5020G Alternator

85A alternator for selected Perkins engine applications using the passenger-side mounting configuration. The mounting layout has 140 mm adjuster-to-pivot centres and an 82 mm inside mounting dimension, with a 17 mm shaft.

Fitment note: Identify the original alternator number and confirm the passenger-side mounting, shaft size, pulley arrangement and electrical connection before ordering.

Technical Specifications

  • Brand: Magneti Marelli
  • Part number: 65-5020G
  • Voltage: 12V
  • Rated output: 85A
  • Adjuster hole: 1 x M8
  • Pivot holes: 2 x 8 mm
  • Adjuster-to-pivot centres: 140 mm
  • Inside foot-to-foot / pivot-lug dimension: 82 mm
  • Shaft diameter: 17 mm

Part Number Cross References

Match the original alternator number and physical specification before ordering.

  • 102211-8160, 102211-8161, 102211-8171, 102211-8180, 102211-8181, YLE10099, YLE10118

Vehicle Application List

  • Caterpillar M322C excavator, 6.0L Caterpillar 3056E diesel, listed from 2003 with no final year specified.
  • Terex SKL 873, 6.0L Perkins 1106C-E60TA diesel, listed from 2002 with no final year specified.
  • Terex TL160, 4.4L Perkins 1104D-44T diesel, 2006–2013.
  • Selected Perkins installations with passenger-side alternator mounting; match the original alternator number, shaft and pulley arrangement.

Applications apply to the specified engine and alternator configuration. Compare the original unit number, electrical connection and pulley before ordering.
