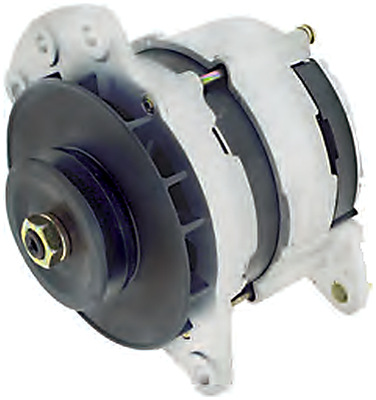

Jaylec 65-5105 Alternator

12V 65A alternator with a universal mounting arrangement, three 8mm adjuster holes and a 17mm shaft. Features a 73mm single-A-section pulley. Suitability depends on the individual mounting, belt alignment and electrical connections.

Technical Specifications

• Brand: Jaylec
• Part number: 65-5105
• Voltage: 12V
• Rated output: 65A
• Adjuster hole: 3 x 8 mm
• Pivot holes: 2 x 10 mm
• Adjuster-to-pivot centres: 1 x 172, 1 x 166 mm
• Inside foot-to-foot / pivot-lug dimension: 83 mm
• Pulley diameter: 73 mm
• Pulley type: 1A
• Shaft diameter: 17 mm
• Regulator: Internal

Part Number Cross References

Match the original alternator number and physical specification before ordering.

• 0 120 690 170, BX690170, 66021126, 66021590

Vehicle Application List

• Universal mounting configuration for individually matched installations; no blanket vehicle-fitment claim

Applications apply to the specified engine and alternator configuration. Compare the original unit number, electrical connection and pulley before ordering.
