Nikko Alternator 24V 90A for Isuzu FTR900 / F34 6HK1-TC (65-3634G)


Nikko Alternator 24V 90A for Isuzu FTR900 / F34 6HK1-TC (65-3634G) - NZ Air Filter

In stock

Price:  NZD $2564.76 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post

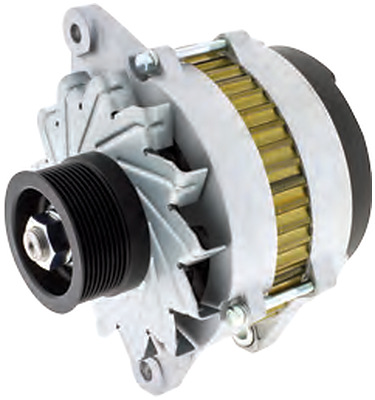

Nikko 65-3634G Alternator

24V 90A brushless alternator for selected Isuzu FTR900 and F34 applications with the 6HK1-TC engine. It has a 90 mm nine-rib pulley and 241 mm adjuster-to-pivot centres.

Fitment note: Match the 9PV pulley, mounting arrangement, electrical connection and original alternator number. Isuzu trucks can use different alternator configurations.

Technical Specifications

  • Brand: Nikko
  • Part number: 65-3634G
  • Voltage: 24V
  • Rated output: 90A
  • Adjuster hole: 1 x 12 mm
  • Pivot holes: 2 x 14.5 mm
  • Adjuster-to-pivot centres: 241 mm
  • Inside foot-to-foot / pivot-lug dimension: 69 mm
  • Pulley diameter: 90 mm
  • Pulley type: 9PV
  • Construction: Brushless

Part Number Cross References

Match the original alternator number and physical specification before ordering.

  • 8-98013-463-1, 8-98013-463-2, 8-98330-087-0, 0-35000-8710, 0-35000-8711, 0-35000-8712, 0-35000-8713

Vehicle Application List

  • Isuzu FTR900 and F34 with 6HK1-TC diesel engine and the matching 24V, nine-rib-pulley alternator arrangement.

Applications apply to the specified engine and alternator configuration. Compare the original unit number, electrical connection and pulley before ordering.
