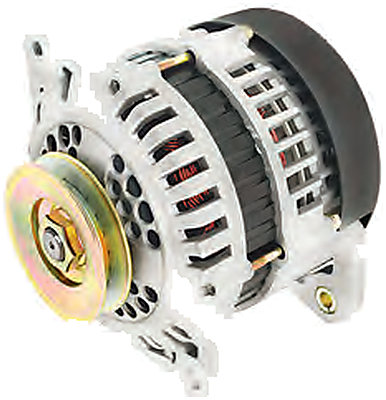

Jaylec Alternator 12V 70A for Nissan Pathfinder D21 VG30E V6 (65-3107)


Jaylec Alternator 12V 70A for Nissan Pathfinder D21 VG30E V6 (65-3107) - NZ Air Filter

In stock

Price:  NZD $300.24 (inclds GST)

Quantity in stock 1 item(s) available.

Generally Overnight Delivery with Courier Post




Recent View

12V 70A replacement alternator for selected Nissan Navara and Pathfinder D21 petrol applications listed below. Features a 77mm single A-section pulley and 169mm adjustment-to-pivot spacing.

Fitment Note: Confirm the engine and original alternator reference, then compare the A-section pulley and twin-pivot mounting. The D21 model designation covers different engines; do not select this unit from chassis code alone.

Technical Specifications

  • Brand: Jaylec
  • Part number: 65-3107
  • Voltage: 12V
  • Amperage: 70A
  • Adjustment hole: 1 x M8
  • Pivot hole: 2 x 8 mm
  • Adjustment-to-pivot distance: 169 mm
  • Inside feet / pivot lug dimension: 80 mm
  • Pulley diameter: 77 mm
  • Pulley section: 1A
  • Unit weight: 5.5 kg

Part Number Cross References

Match the original alternator number together with the mounting, pulley and electrical connector.

  • BXH1224N, BXH1229N, BXH1247R, LR160-169, LR160-702B, LR160-703B
  • LR170-22, LR170-701, LR170-726B, LR170-734, LR170-734B, LR170-739B
  • LR170-745, LR170-769, LR170-801, 23100-0S200, 23100-12G01, 23100-12G02
  • 23100-17C00, 23100-77P00, 23100-88G00

Vehicle and Equipment Applications

  • Nissan Navara D21 3.0L VG30E V6 petrol, 1992–1997.
  • Nissan Pathfinder D21 3.0L VG30E V6 petrol, 1995–1996.
  • Nissan Pathfinder I D21 2.4L Z24 petrol, 1986–1992, using the matching 70A alternator configuration.

Related air filters: K&N 33-2031-2 is listed for the 1995 Nissan Pathfinder 3.0L V6 petrol application. Confirm the airbox separately; this filter reference does not identify the alternator.
