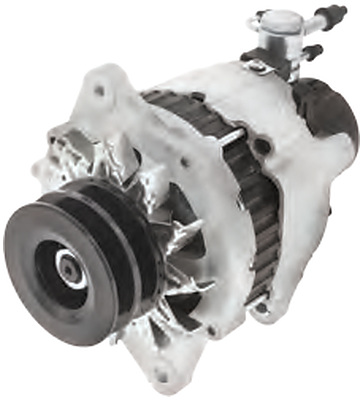

Jaylec 65-3014 Alternator Jaylec 12V 70A alternator for selected Nissan diesel applications. This pump-type unit has internal regulation, an 84 mm twin-groove pulley and 175 mm adjuster-to-pivot centres. Fitment note: Match the original alternator number, pump arrangement and electrical plug as well as the 84 mm twin-groove pulley. Engine family or vehicle model alone does not identify every alternator variant. Technical Specifications - Brand: Jaylec
- Part number: 65-3014
- Voltage: 12V
- Rated output: 70A
- Adjuster hole: 1 x M8
- Pivot holes: 2 x 10.5
- Adjuster-to-pivot centres: 175 mm
- Inside foot-to-foot / pivot-lug dimension: 80 mm
- Pulley diameter: 84 mm
- Pulley type: 2A
- Regulator: Internal
- Configuration: Pump type
Part Number Cross References Match the original alternator number and physical specification before ordering. - BXH1204N, 02121-5011, 02121-7050, 02121-8060, LR140-130B, LR140-130P, LR140-424T, LR140-131B
- LR140-133E, LR140-241, LR140-401, LR140-402, LR140-408, LR150-100, LR140-415B, LR140-416
- LR150-133A, LR140-418, LR150-133B, LR140-419T, LR150-133C, LR140-421, LR150-133E, LR150-136
- LR150-428E, LR150-428S, LR150-428T, LR150-430C, LR150-430S, LR150-430T, LR150-435S, LR150-435T
- LR155-411, LR150-443S, LR150-443T, LR150-427C, LR150-4281, LR160-164, LR160-436T, LR160-437
- LR160-437S, LR160-402, LR160-437T, LR160-442B, LR160-J26E, LR160-421, LR160-443S, LR165-428
- LR160-422B, LR160-443T, LR160-425T, LR160-426E, LR160-426S, LR160-426T, LR160-427C, LR160-427T
- LR170-4068, LR170-406B, LR170-406C, LR170-406E, LR170-406F, LR170-407B, LR170-407E, LR170-407S
- LR170-407T, LR170-408C, LR170-408T, LR170-409, LR170-412T, LR170-414, LT140-401, LT150-115C
- LT150-116C, LT150-77C, LT155-405, A2T38776, 23100-06N00, 23100-G5704, 23100-G5700, 23100-G5701
- 23100-G5702, 02121-9012, LR 170-407, LR 170-412
Vehicle Application List - Nissan Patrol Y60 / GQ 4.2L TD42 diesel 4WD, 1987–1997
- Nissan Patrol Y61 / GU 4.2L TD42 diesel 4WD, 1998–2003
- Nissan Urvan E24 2.7L TD27 diesel van and bus, 1987–1993
- Selected Nissan Navara and Patrol applications with TD27, TD42 or SD25 engines; match the original unit reference
Applications apply to the specified engine and alternator configuration. Compare the original unit number, electrical connection and pulley before ordering. Related air filters: K&N E-9201 is listed for the 1995 Nissan Safari/Patrol 4.2L diesel application. These are air-filter references for the stated vehicles, not alternator interchange numbers. Match the original airbox and filter before ordering. |
