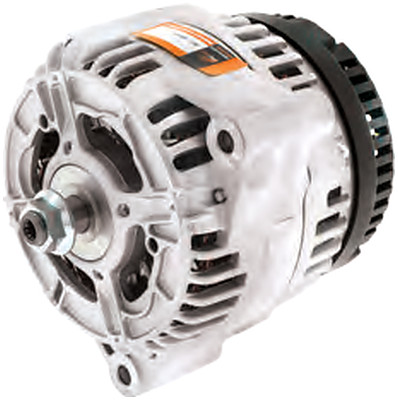

Mahle 65-2644 Alternator

Mahle 65-2644 is a 110A internally regulated alternator for selected Deutz tractors and Normet mining equipment with a 24V electrical system. It has an internal fan and a 17mm shaft.

Technical Specifications

• Brand: Mahle
• Part number: 65-2644
• System voltage: 24V
• Rated output: 110A
• Adjustment hole: 1 x 10 mm
• Pivot hole: 1 x 10 mm
• Adjustment-to-pivot distance: 156 mm
• Inside foot-to-foot / pivot-lug dimension: 56 mm
• Shaft diameter: 17 mm
• Regulator: Internal
• Fan: Internal

Part Number Cross References

Match the original number together with the electrical and physical specification.

• 11.203.163, 11.204.278, 11.204.411, AAN5146, AAN8187, AAN5838
• IA1385, MG475

Vehicle and Equipment Applications

• Deutz tractor applications
• Normet Utimec LF 500 Transmixer — TCD2012 L6 Tier 3 diesel.
• Normet Utimec LF 600 Agitator — TCD2013 L4 Tier 3 diesel.
• Normet Utimec LF 600 Transmixer — OM366.907 diesel.
• Normet Utimec MF 500 Transmixer — DC11.03, DC11.04 or DC11.06 diesel.
• Normet Variomec MF 050 M — DC11.07 diesel.

Application names identify selected configurations. Compare the original unit and connections before ordering.
