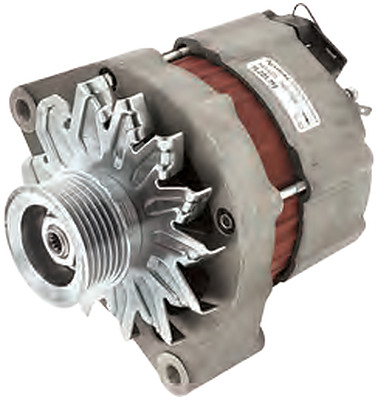

Mahle 65-1070 Alternator Mahle 65-1070 is a 70A internally regulated alternator for selected Mercedes-Benz applications. It is for a 12V electrical system and uses a 56mm six-rib pulley. Fitment note: Match the original alternator number, electrical connection and mounting dimensions before ordering. Check the required pulley and belt arrangement for the specific vehicle or machine. Technical Specifications - Brand: Mahle
- Part number: 65-1070
- System voltage: 12V
- Rated output: 70A
- Adjustment hole: 1 x 10 mm
- Pivot hole: 1 x 10 mm
- Adjustment-to-pivot distance: 156 mm
- Inside foot-to-foot / pivot-lug dimension: 56 mm
- Pulley diameter: 56 mm
- Pulley type: 6PV
- Regulator: Internal
Part Number Cross References Match the original number together with the electrical and physical specification. - 0 120 488 132, 0 120 488 133, 0 120 489 232, 0 120 489 233, 0 120 489 234, 0 120 489 274
- 0 120 489 275, 0 120 489 298, 0 120 489 300, 0 120 489 301, 0 120 489 302, 0 120 489 323
- 0 120 489 324, 0 120 489 325, 0 120 489 326, 0 120 489 327, 0 120 489 330, 0 120 489 331
- 0 120 489 332, 0 120 489 333, 11.201.713, AAK4571, IA0713, IA713
- MG22, 0081540902, A 007 154 60 02, A 007 154 61 02, A 008 154 11 02, A 008 154 87 02
- A 006 154 87 02, A 006 154 88 02, A 006 154 89 02, A 007 154 33 02, A 007 154 48 02, A 007 154 52 02
- A 007 154 53 02, A 007 154 54 02, DRA3720, 433138, 436120, A13V02
- A13V03, A13V05, A13V07
Vehicle and Equipment Applications - Mercedes-Benz 190 2.0 (W201) — M 102.921, M 102.924 petrol, 1982–1990.
- Mercedes-Benz 190 D 2.0 (W201) — OM 601.911 diesel, 1983–1989.
- Mercedes-Benz 190 D 2.5 (W201) — OM 602.911 diesel, 1985–1993.
- Mercedes-Benz 190 E 1.8 (W201) — M 102.910 petrol, 1990–1993.
- Mercedes-Benz 190 E 2.0 (W201) — M 102.961, M 102.962 petrol, 1982–1993.
- Mercedes-Benz 190 E 2.3 (W201) — M 102.985 petrol, 1986–1993.
- Mercedes-Benz 190 E 2.3-16 (W201) — M 102.983 petrol, 1984–1988.
- Mercedes-Benz 190 Turbo-D 2.5 (W201) — OM 602.961 diesel, 1988–1993.
- Mercedes-Benz E 300 T Turbo-D - 3.0 (S124) — OM 603.963 diesel, 1993–1996.
- Mercedes-Benz E 300 Turbo-D - 3.0 (W124) — OM 603.960 diesel, 1993–1995.
- Mercedes-Benz 200 - 2.0 (W124) — M 102.922 petrol, 1985–1990.
- Mercedes-Benz 230 E - 2.3 (W124) — M 102.982 petrol, 1984–1993.
- Mercedes-Benz 250 D - 2.5 (W124) — OM 602.912 diesel, 1985–1993.
- Mercedes-Benz 250 Turbo-D - 2.5 (W124) — OM 602.962 diesel, 1988–1993.
- Mercedes-Benz 300 D - 3.0 (W124) — OM 603.912 diesel, 1984–1993.
- Mercedes-Benz 200 T - 2.0 (S124) — M 102.922 petrol, 1985–1990.
- Mercedes-Benz 200 T D - 2.0 (S124) — OM 601.912 diesel, 1985–1991.
- Mercedes-Benz 200 TE - 2.0 (S124) — M 102.962, M 102.963 petrol, 1988–1992.
- Mercedes-Benz 230 TE - 2.3 (S124) — M 102.982 petrol, 1985–1992.
- Mercedes-Benz 250 T D - 2.5 (S124) — OM 602.912 diesel, 1985–1993.
- Mercedes-Benz 300 T D - 3.0 (S124) — OM 603.912 diesel, 1986–1993.
Application names identify selected configurations. Compare the original unit and connections before ordering. Related air filters: K&N E-9178 is listed for the 1990 Mercedes-Benz 190E 2.0L petrol application. These are air-filter references for the stated vehicles, not alternator interchange numbers. Match the original airbox and filter before ordering. |
