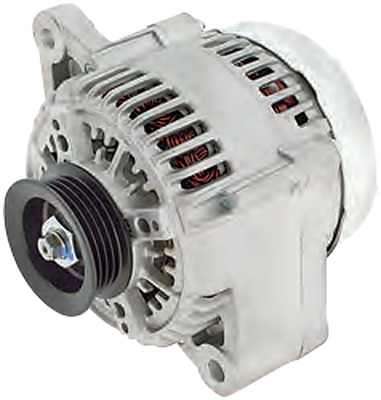

Jaylec 65-8460 Alternator

12V 80A replacement alternator for selected Toyota Hilux / Land Cruiser Prado 3.4L 5VZ-FE applications.

Fitment note: Compare the original alternator number, four-rib pulley and mounting before ordering. Confirm the engine code and chassis variant; not every Hilux or Prado uses this alternator.

Technical Specifications

• Brand: Jaylec
• Part number: 65-8460
• Voltage: 12V
• Rated output: 80A
• Mounting centres: 164 mm
• Adjuster hole: 1 x 8.5 mm
• Pivot hole: 1 x 10.5 mm
• Inside foot / pivot-lug dimension: 58 mm
• Pulley type: 4PV
• Pulley diameter: 62.5 mm
• Regulator: Internal

Part Number Cross References

Match the original number and the complete alternator specification before ordering.

• BXD1223N, F042302092, 101211-4130, 101211-4131, 101211-4132, 101211-0730
• 101211-9590, 101211-9591, 102211-5040, 102211-5042, 27060-62160, 27060-62190

Vehicle Application List

• Toyota Hilux VZN167R / VZN172R, 3.4L petrol 5VZ-FE, 2001–2005
• Toyota Land Cruiser Prado VZJ90R / VZJ95R / VZJ90W / VZJ95W, 3.4L petrol 5VZ-FE, 1996–2003
