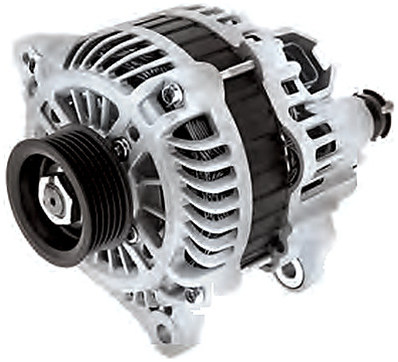

12V 110A replacement alternator for selected Nissan 350Z, Fairlady Z and Pathfinder models with the 3.5L VQ35DE engine. Features a 62mm six-rib pulley and 82mm mounting-foot dimension.

Technical Specifications

• Brand: Jaylec
• Part number: 65-6720
• System voltage: 12V
• Rated output: 110A
• Adjustment fixing: 1 × M8
• Pivot fixing: 1 × 11mm, 1 × M10
• Adjustment-to-pivot centres: 159mm
• Inside-foot / pivot-lug measurement: 82mm
• Pulley diameter: 62mm
• Pulley profile: 6PV

Part Number Cross-References

Cross-reference part numbers:

• LR1110-712, A003TG0191, A3TG0191, 23100-CD010

Vehicle & Equipment Applications

• Nissan 350Z Z33 3.5L VQ35DE petrol, 2003–2006; match the original alternator reference.
• Nissan Fairlady Z Z33 3.5L VQ35DE petrol, listed for 2002–2008; confirm engine code and original alternator on later builds.
• Nissan Pathfinder R50 3.5L VQ35DE petrol, from 2004; final year requires confirmation and the original alternator must match.

Related air filters: K&N 33-2031-2 is listed for selected Nissan 350Z 3.5L factory airboxes, including the 2005 application. Confirm the vehicle year, engine and original airbox before ordering the filter. These are air-filter references, not alternator interchange numbers.
