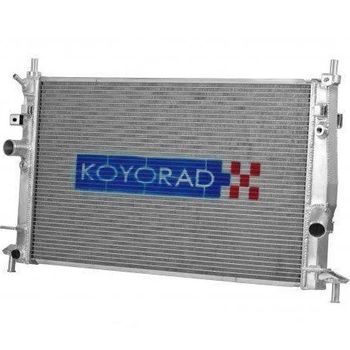

KOYO- KS062306 International part number
KOYO-KH062306 Is used by Koyorad USA
OEM # LF8M1520YD

HYPER KH Series 25mm Core
Koyorad’s new “KH Series” radiators feature high density 25mm cores. Koyorad’s radiator design and selection of materials results in the most effective and efficient means of heat extraction while also allowing proper air circulation through the engine bay. Koyorad was able to increase coolant volume while keeping overall weight to a minimum. In typical fashion, Koyorad has engineered this radiator with precision, directly replacing the stock OEM plastic/aluminum radiator and will bolt easily to the factory equipped fan shroud for a quick and simple installation. Get every ounce of cooling efficiency from your Koyo all aluminum performance radiators with a genuine Koyorad Hyper Cap, Sold Separately. Drain Plug is included.

Koyorad’s superior quality, precision hand welds, reliability and uniformity are what have earned Koyorad their excellent reputation in performance cooling worldwide. This performance aluminum radiator is the perfect solution where space savings and high performance is a must.
.

Features:

• Precise Tube and Fin Alignment: Construction under strict quality control and solid boxing result in tubes with optimal coolant flow and fins with highly efficient heat transfer.
• Nocolok Brazing: Tubes, Fins, Headers and Brackets are brazed in a state-of-the-art Nocolok furnace, bonding all components to resist damage from vibration, road debris, and the elements.
• Billet Filler Neck: Precision machined billet filler necks are incorporated on each Koyo radiator for strength, durability and better sealing.
• OE Specific Mountin: Koyo incorporates application-specific mounting locations for all fan shrouds, inlet/outlet hoses and top/bottom mounting pins, ensuring quick and pain-free installs.
• Hand Crafted Heliarc Welds: Each Koyo Alloy Race Radiator is Heliarc welded individually by hand. This creates the strongest aluminium to aluminium bond to mate all components.

Fitment: 2009-2013 Mazda 3 BL MPS 2.3L Turbo

Note: Automatic vehicles will require external davies craig DC-677 transmission cooler
