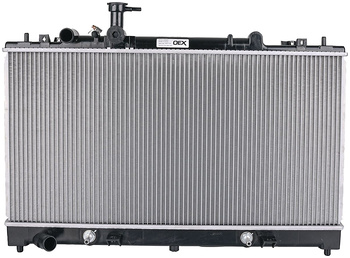

NZA650X is a replacement engine cooling radiator for selected Mazda 6 / Atenza GG/GY Auto models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Mazda 6/Atenza GG/GY, automatic

Technical Specifications:

• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 738x375x26mm
• Hose Outlets: 31mm inlet, 31mm outlet
• Oil Cooler Size: 350 mm

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• Jayrad: JR650J
• Adrad: MAZ035
• Koyorad: PL061820
• Repco: RAD650X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation. Check whether the top tank has a bleed pipe, and compare the lower fan-shroud mounts. Similar Mazda 6/Atenza cores can have different fittings.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
