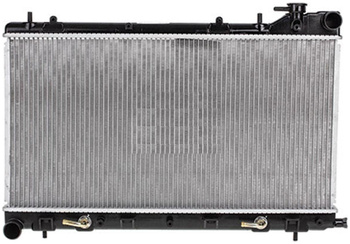

NZA1819X is a replacement engine cooling radiator for selected Subaru Forester SG 2.0/2.5 Auto models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Subaru Forester SG 2.0L EJ201 petrol, automatic, 02/08
• Subaru Forester SG 2.5L EJ251 petrol, automatic, 02/05
• Subaru Forester SG 2.5L EJ253 petrol, automatic, 05/08

Technical Specifications:

• NZA Part Number: NZA1819X
• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 688x360x16mm
• Hose Outlets: 39mm inlet, 39mm outlet

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 45111SA000, 45119SA000
• Jayrad: JR1819J
• Adrad: SUB015
• Koyorad: PL091520
• Repco: RAD1819X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation. Compare the radiator cap and bleed-pipe arrangement with the original radiator.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
