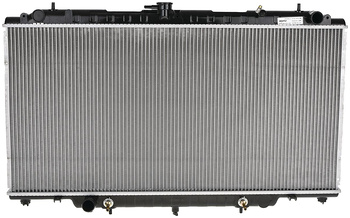

NZA1353X is a replacement engine cooling radiator for selected Nissan Patrol GU Y61 3.0 ZD30 Auto models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Nissan Patrol GU/Y61 3.0L ZD30DDTi turbo diesel, automatic, 07/16

Technical Specifications:

• NZA Part Number: NZA1353X
• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 910x450x34mm
• Hose Outlets: 35mm inlet, 35mm outlet
• Oil Cooler Size: 375 mm

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 21400-VB300, 21400-VB301
• Jayrad: JR1353J
• Adrad: NIS044
• Koyorad: PL021509
• Repco: RAD1353X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation. Compare the bleed and overflow connections, including their position on the upper tank or filler neck.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
