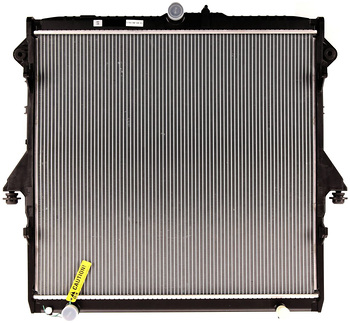

NZA1432X is a replacement engine cooling radiator for selected Ford Ranger PX 2.2/3.2 TDdi Auto models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Ford Ranger PX 2.2L TDdi P4-AT, automatic, 21/22
• Ford Ranger PX 3.2L TDdi P5-AT, automatic, 21/22

Technical Specifications:

• NZA Part Number: NZA1432X
• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks
• Core Dimensions: 644x605x26mm
• Hose Outlets: 35mm inlet, 32mm outlet

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• Jayrad: JR1432J
• Adrad: FOR060
• Koyorad: PL062150
• Repco: RAD1432X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
