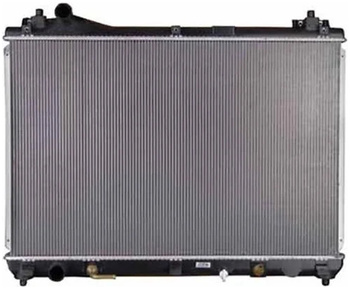

NZA1026X is a replacement engine cooling radiator for selected Suzuki Grand Vitara 2.0/2.4 Auto models. It combines an aluminium core with plastic tanks.

Selected Vehicle Applications:

• Suzuki Grand Vitara JB424/JT424/TDA4 2.4L J24B petrol, automatic, 12/19
• Suzuki Grand Vitara TD54V/JB420 2.0L J20A petrol, automatic, 12/15

Technical Specifications:

• NZA Part Number: NZA1026X
• Transmission: Automatic
• Core Construction: Aluminium with plastic end tanks

Note: Core measurements describe the cooling matrix only, excluding tanks and mounting brackets.

Cross-Reference Part Numbers:

• OEM: 17700-66J10, 17700-66J11
• Jayrad: JR1026J
• Adrad: SUZ009
• Koyorad: PL051910
• Repco: RAD1026X

Fitment Note:

Please confirm mounting positions, hose connections, transmission cooler fittings, and physical dimensions against your existing factory radiator prior to installation. Compare the lower tank, including whether a separate heater-pipe connection is fitted.

Always use the vehicle manufacturer’s specified coolant type and bleeding procedure when fitting. Inspect hoses, cap, and cooling fans as part of installation.

Warranty Details

Duration: 2 years or 50,000 kilometres (whichever happens first).
